IP68 Deep Blue 340W Solar Photovoltaic Modules Silicon Material

Product Categories

Anhui Sunerise Energy Co., Ltd

Contact Now

IP68 Deep Blue 340W Solar Photovoltaic Modules Silicon Material

Name: IP68 Deep Blue 340W Solar Photovoltaic Modules Silicon Material
Brand: SUNERISE
Price: 1 USD

Quality IP68 Deep Blue 340W Solar Photovoltaic Modules Silicon Material wholesale

Brand Name : SUNERISE

Model Number : JC340-72P

Certification : TUV , CQC , CE , ISO etc

Place of Origin : Hefei,China

MOQ : 31pcs

Price : Negotiable

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1MW,1Month

Delivery Time : Within 10 work days

Packaging Details : Packed in cartons with 31 pieces per pallet

Solar Cell : Polycrystalline cell 156.75*156.75

Waterproof Grade : IP 68

Cable : 4.0mm2 900mm

Size : 1956*992*35mm

Weight : 20KG

Frame : Anodized Aluminium Alloy

Warranty : 25 years

Application : Solar Home System

Material : Si Cells

Contact Now

Factory Price Silicon Material Deep Blue 340W Solar Photovoltaic Modules

Features:

1. Use A-grade solar cell with high efficiency;
2. High transmittance, low iron tempered glass with enhanced stiffness and impact resistance;
3. Anodized aluminum alloy frame with high mechanical strength for easy installation;
4. Anti-aging EVA and high flame resistant Back Sheet (TPT), to provide long-life and enhanced cell performance;
5. Outstanding electrical performance under high temperature and low irradiance conditions;
6. 100% apply EL(electroluminescence) technology;
7. 5 years limited warranty, 10 years limited warranty for 90% power output, 25 years limited warranty for 80% power output;
8. With CE, ISO9001: 2008 certificate;

IP68 Deep Blue 340W Solar Photovoltaic Modules Silicon Material

Grade A Material

>90% Higher Transmittance EVA,Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability.

21kV High-Voltage Breakdown Test, Better Durability Withstand Fire/Dust/UV/Tear Tests For Super Isolation Back Sheet,Multi-layer Structure.

12% Ultra Clear Tempered Glass.
 30% Lower Reflection

22% Higher Efficiency,5BB Cells
93 Fingers PV Cells, Anti-Pid

120N Tensile Strength Frame
 110% Seal-lip Design Glue Injection
 (Black/Silver Optional)

Our Factory

Technical Specification Data

Model	JC335-72P	JC340-72P	JC345-72P	JC350-72P	JC355-72P
Rated Maximum Power at STC	335W	340W	345W	350W	355W
Open Circuit Voltage(Voc/V)	46.3	46.5	46.7	46.9	47.0
Maximum Power Voltage(Vmp/V)	37.9	38.2	38.4	38.5	38.7
Short Circuit Current(Isc/A)	9.36	9.45	9.5	9.6	9.69
Maximum Power Current(Imp/A)	8.84	8.90	9.00	9.09	9.17
Module Efficiency	17.3%	17.5%	17.8%	18.0%	18.3%
Standard Test Condition(STC)	Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5

Other Products:

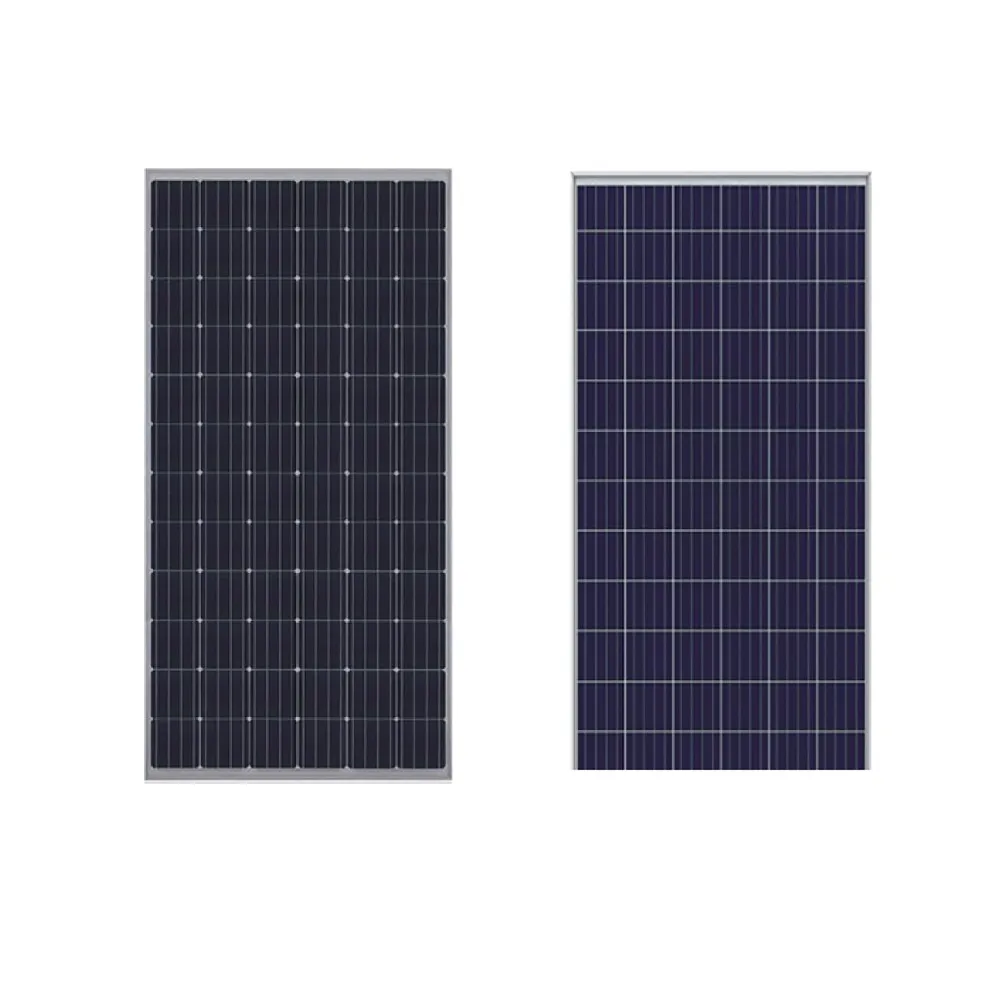

18V 150W 155W 160W 165W 170W Mono&Poly Solar Panels

30V 4BB 5BB 250W 255W 260W 265W 270W 275W 280W 285W 290W 295W Mono&Poly Solar Panels

36V 4BB 5BB 300W 305W 310W 315W 320W 325W 330W 335W 340W 345W Mono&Poly Solar Panels

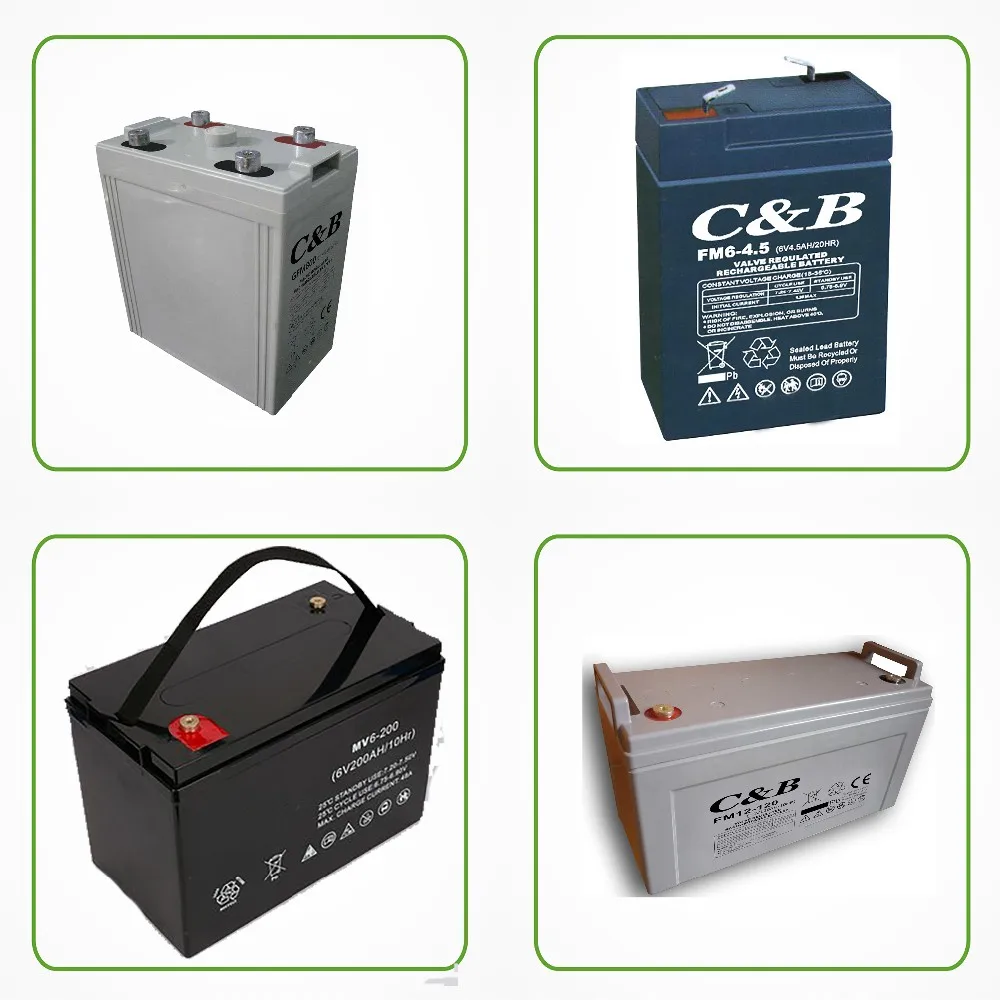

BATTERY

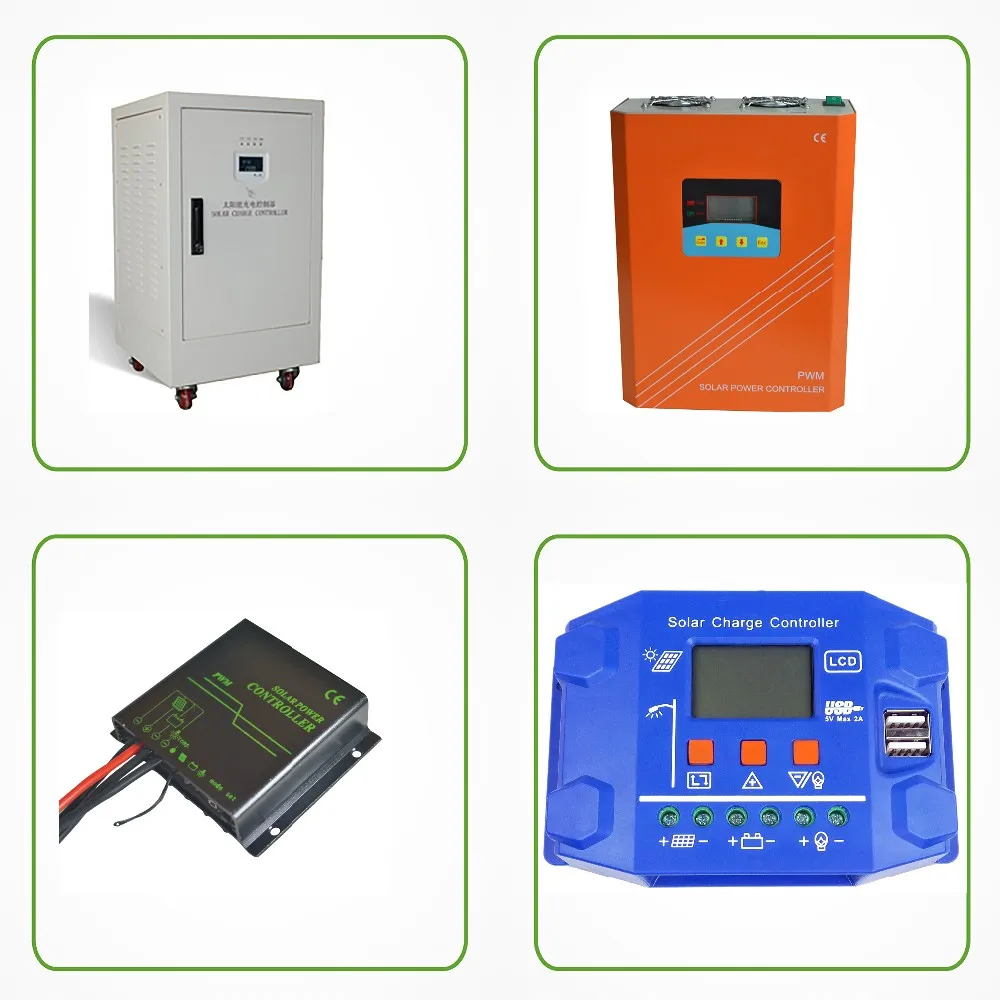

SOLAR CHARGE CONTROLLER

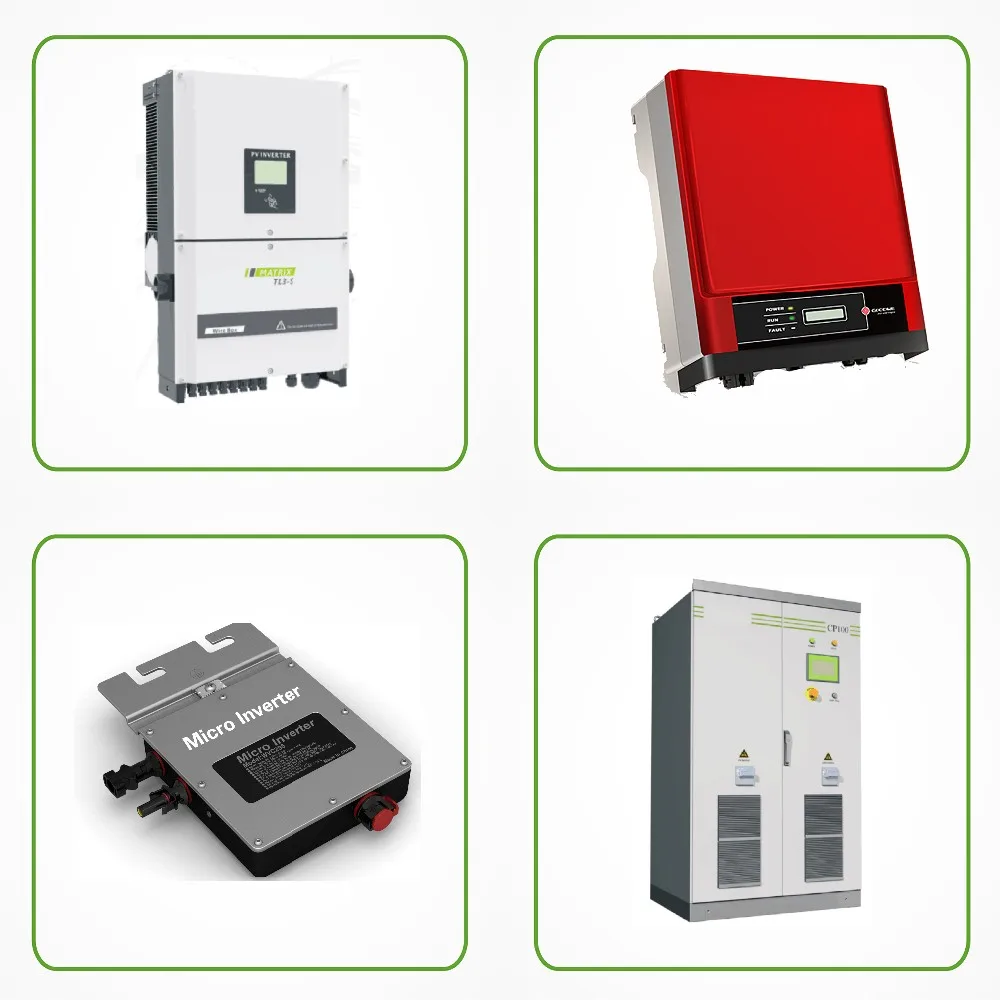

ON GRID INVERTER

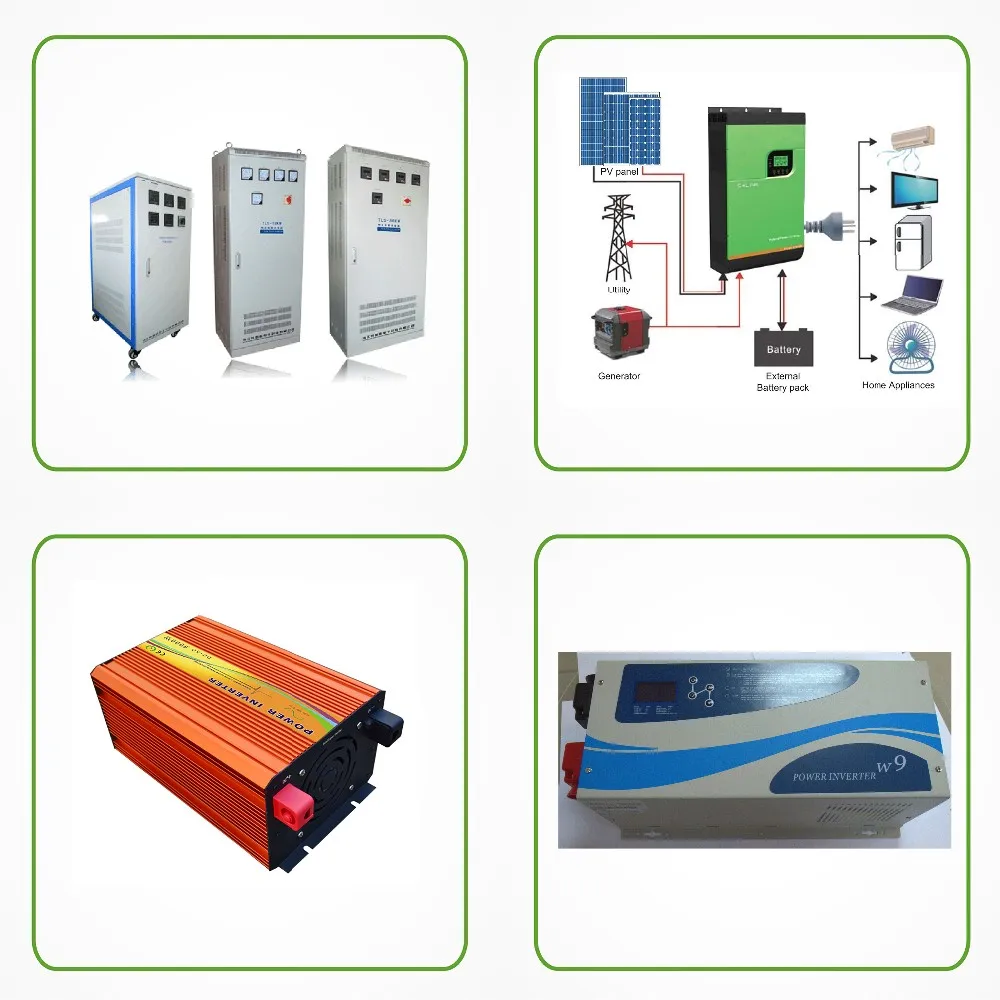

OFF GRID INVERTER

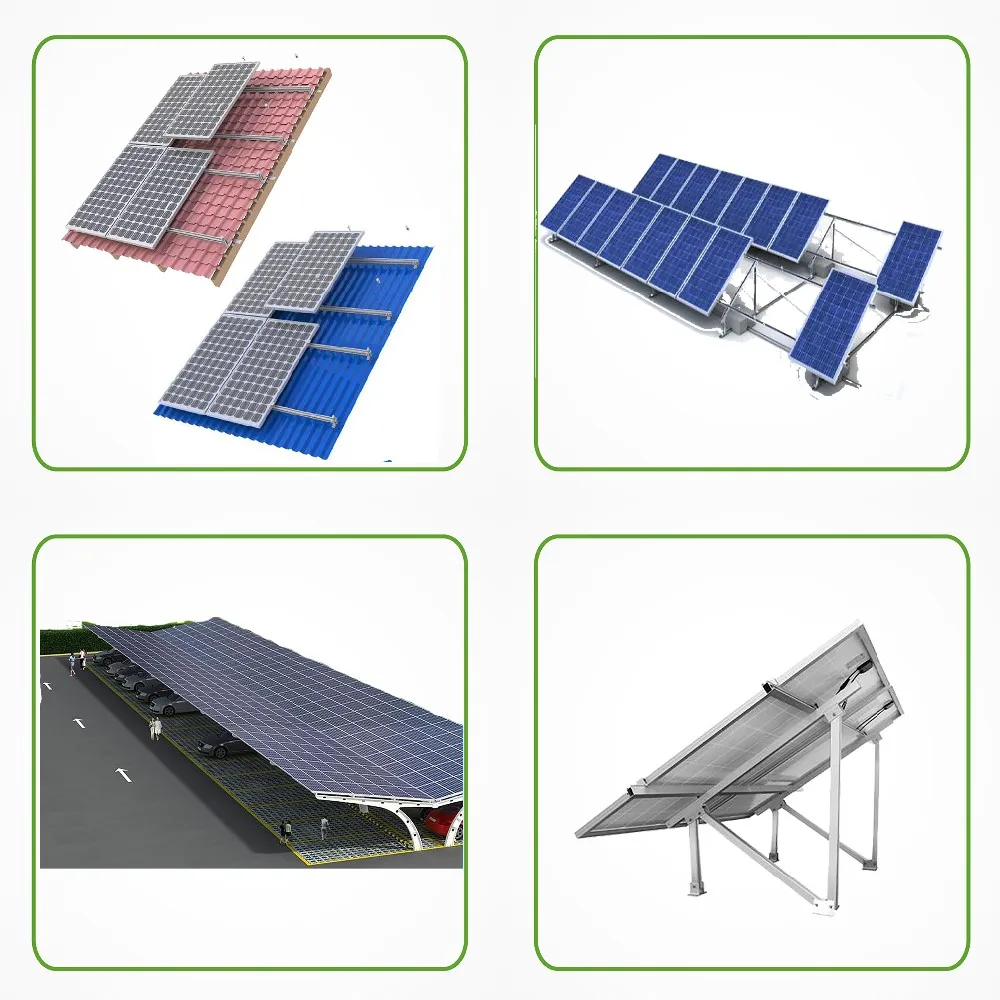

MOUNTING STRUCTURE

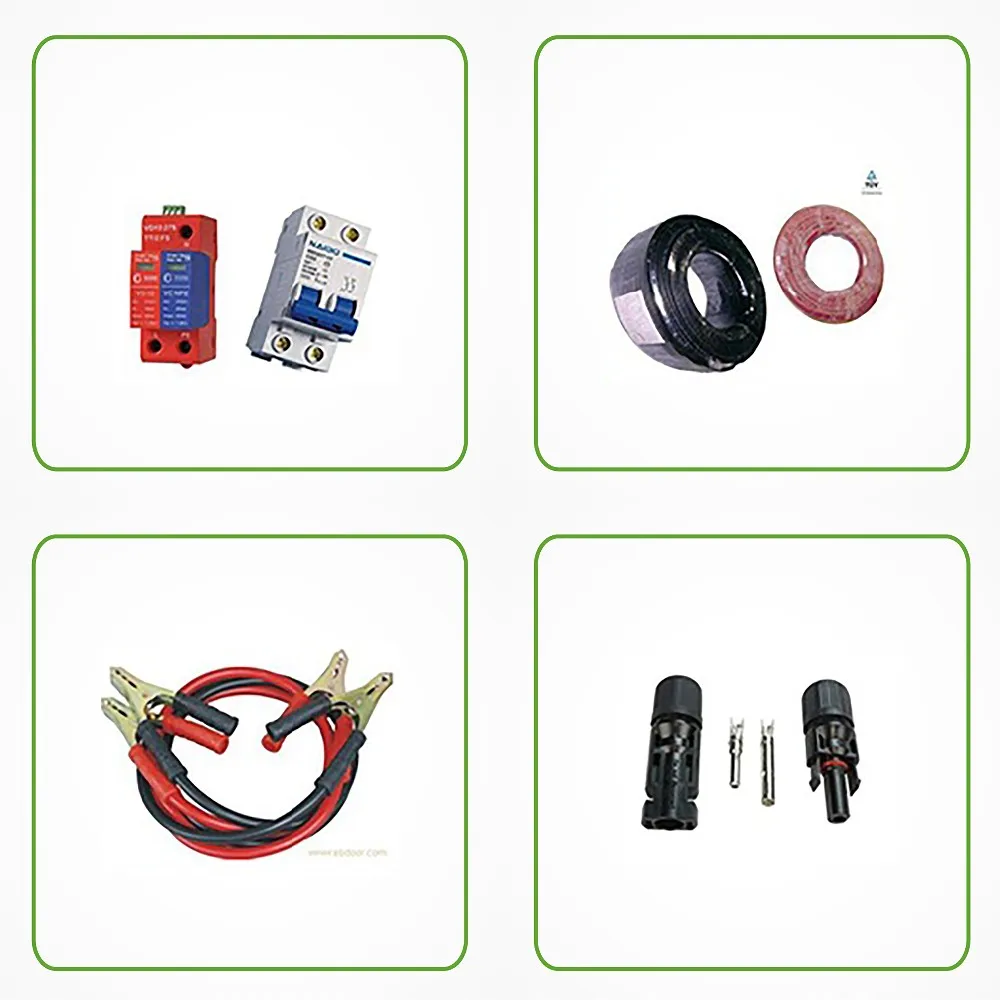

ACESSORIES
